참가업체 마케팅정보

ㆍ업체명

TSUGAMI CORPORATION

ㆍ대표자

Nobuhiro Watabe

ㆍ주소

12-20, Tomizawa-cho, Nihonbashi, Chuo-ku,Tokyo 103-0006, JAPAN 1-1, Higashizao 1-chome, Nagaoka-shi, Niigata, 940-8630, JAPAN

ㆍ전화번호

+81-3-3808-1711

ㆍ직원수

2,500 or more

ㆍ홈페이지

www.tsugami.co.jp

ㆍ이메일

hjban@tsugamikorea.com

ㆍ설립연도

1950

ㆍ업체분류

제조(해외본사)

ㆍ수요산업군

ㆍ주요고객사

ㆍsns계정



ㆍ회사소개

TSUGAMI는 “고정도·고강성·고속”이라는 핵심 가치를 바탕으로 고객에게 최적의 가공 품질과 생산 효율을 실현하는 Total solution provider로 나아갑니다. 정밀함(High Accuracy)으로 품질을, 견고함(High Rigidity)으로 신뢰를, 속도(High Speed)로 경쟁력을 제공합니다. 끊임없는 기술 혁신과 고객 중심의 솔루션을 통해 고객의 성공을 함께 만들어가는 든든한 파트너가 되겠습니다.

제조사 정보

ㆍ제조사

TSUGAMI

ㆍ제조사 소개

We provide high-precision, high-speed and high-rigidity products in line with customers’ needs, underpinned by the precision technologies we have been developing ever since TSUGAMI was first established. In the face of rapidly changing technologies, not least in the IT industry, we recognize that we need to improve overall performance even further. That is why we are focusing all of our efforts on research and development. Looking ahead, we intend to take on board direct feedback from customers and anticipate their needs, so that we can maintain our focus on product development, with an emphasis on automatic lathes, grinding machines, machining centers and other high-precision processing machinery, and continue providing products that guarantee customer satisfaction. We look forward to serving you for many years to come.

ㆍ국가

일본

ㆍ전화번호

3-3808-1172

ㆍ이메일

overseas@tsugami.co.jp

ㆍ홈페이지

https://www.tsugami.co.jp/eng/

전시품 정보

ㆍ제품명

Turning Center

ㆍ모델명

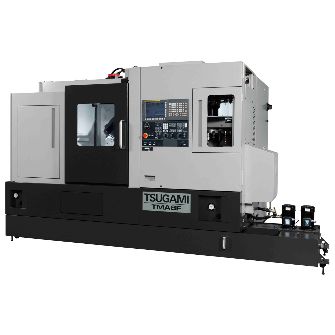

TMA8F

ㆍ제조사

TSUGAMI

ㆍ세부 품목 분류

복합가공기

ㆍ제품설명

All-in-one machine with 5-axis simultaneous controlled machining for the complex-shaped parts ●5-axis simultaneous control enables 3-D machining of complex-shaped parts. 　■Allows machining with minimum tool protrusion. 　■Machining under the recommended cutting conditions of the tools is possible. 　■Enables complete machining of complex-shaped workpieces in a single machine. ●High-speed tool spindle with max. 20,000 min-1 for high efficiency machining ●B-axis mechanism with direct drive makes high speed and accurate positioning. ●The linear scales on the X-, Y-, and Z-axis slide are provided as standard. It can satisfy the needs of high accuracy machining. ●Up to 60 tools can be stored in the tool magazine. ●3-dimensional interference check function is provided to improve operability.

ㆍ제품 사진

ㆍ제품 동영상 링크

ㆍ제품명

Precision Grinding Machine

ㆍ모델명

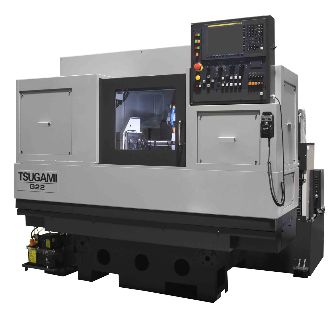

G22

ㆍ제조사

TSUGAMI

ㆍ세부 품목 분류

원통 연삭기

ㆍ제품설명

Grinding machine for intermediate size workpieces between G18-Ⅱ and G300 ●Small floor space with large tooling zone ●Improved stability of high-rigidity hydrodynamic bearing for wheel spindle ●Switchable between straight and angular wheel head

ㆍ제품 사진

ㆍ제품 동영상 링크

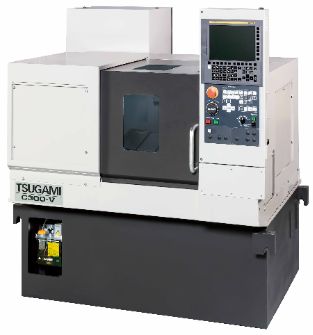

ㆍ제품명

Precision gang tool post

ㆍ모델명

C300-V

ㆍ제조사

TSUGAMI

ㆍ세부 품목 분류

자동선반

ㆍ제품설명

Applicable for both chuck and bar work ●Built-in motor spindle minimizes vibration, improves surface roughness, and prolongs tool life. ●Standard-equipped spindle cooling unit reduces thermal displacement. ●Combination of 3-axis loader (option) and 2-pallet changer (option) achieves high productivity.

ㆍ제품 사진

ㆍ제품 동영상 링크

ㆍ제품명

CNC Precision Automatic Lathe

ㆍ모델명

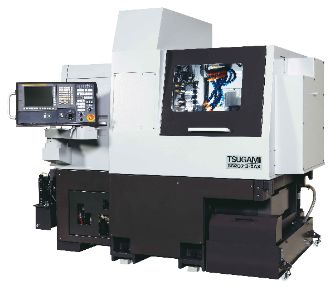

SS207-II-5AX

ㆍ제조사

TSUGAMI

ㆍ세부 품목 분류

자동선반

ㆍ제품설명

SWISS TURN with B-axis tool post extends the capability of complex machining. ●5-axis simultaneous controlled machining is realized on the automatic lathe (SS207-Ⅱ-5AX). ●Live tool of B-axis tool post can machine freely at any angle. ●Live tool of B-axis tool post enables thread whirling or hobbing. ●Modular type B-axis tool post (option) allows whirling head or multiplied tool spindle to be installed. ●Thanks to the thermal displacement compensation, the long-term stable production is realized. ●Automatic programming software is provided as standard.

ㆍ제품 사진

ㆍ제품 동영상 링크

ㆍ제품명

CNC Precision Automatic Lathe

ㆍ모델명

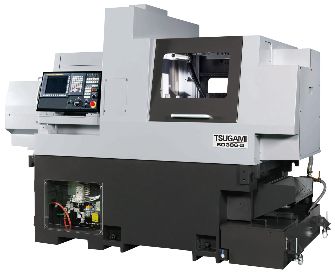

B0385L-III

ㆍ제조사

TSUGAMI

ㆍ세부 품목 분류

자동선반

ㆍ제품설명

CNC Precision Automatic Lathe B038-Ⅲ series Versatile functions on the compact body Enhanced variations and extensive options support diversified workpieces ●The back tool post with Y axis enables the simultaneous operation of back side complex machining with main side machining. (6-axis machine) ●Modular tooling enables optimal tool allocation. (Rear drive is an option.) ●Optional direct-drive guide bushing provides high-speed and accurate machining. ●Guide-bush type or guide-bushless type is selectable according to the workpiece. (Option) (L type is exclusive for guide-bushless machine.) ●Automatic programming software is provided as standard. ●Thanks to the thermal displacement compensation, the long-term stable production is realized. ●Enlarges the spindle ID, and bar end pre-turning is not necessary. ●"Al contour control Ⅱ and high-speed CPU" (option) enable high speed machining. (B0385B-Ⅲ/B0385LB-Ⅲ/B0386-Ⅲ/B0386L-Ⅲ)

ㆍ제품 사진

ㆍ제품 동영상 링크

ㆍ제품명

CNC Precision Automatic Lathe

ㆍ모델명

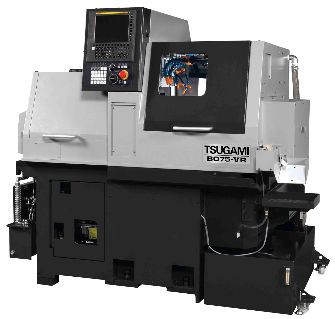

B075-VR

ㆍ제조사

TSUGAMI

ㆍ세부 품목 분류

자동선반

ㆍ제품설명

Ideal for machining high-precision micro parts such as telecom connectors, watch parts ●The toggle is replaced with TSUGAMI’s unique chuck mechanism which provides the quick response and better balance characteristics. Contributes to finer roundness at high speed rotation. ●Ceramic ball bearings are mounted on the main spindle which enables a stable turning pattern, increases surface roughness, and prolongs tool life. ●The clearance of the guide bushing can be easily adjusted from the tooling zone side. ●Interference check function detects interference before it occurs, and the machine is stopped by alarm. (B075-ⅤR) ●Automatic programming software is provided as standard.

ㆍ제품 사진

ㆍ제품 동영상 링크

ㆍ제품명

CNC Precision Automatic Lathe

ㆍ모델명

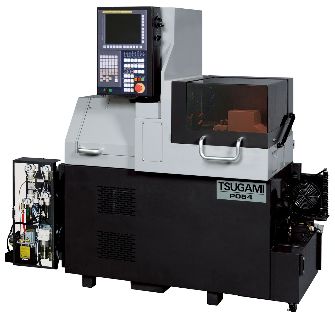

P034

ㆍ제조사

TSUGAMI

ㆍ세부 품목 분류

자동선반

ㆍ제품설명

Optimum for mass production of micro products such as contact probe, watch parts ●Thanks to the measures for thermal displacement and automatic compensation function, displacement of production from cold start is minimized. ?Coolant tank capacity: 50L ?Fan cooling for coolant, cooling unit for X-/Y-axis motors, and tool-height displacement compensation system are provided as standard. ●High-speed spindle reduces the machining time by the optimum cutting speed. ●Excellent roundness without vibration during high-speed machining is achieved by TSUGAMI's unique chuck opening/closing mechanism. ●Chuck gripping force is numerically adjusted with air regulators so that the most suitable gripping force can be determined for thin workpiece. ●Provides easy-to-use software for machining small-dia and fine precision parts: Tool height compensation function. ●Optimal live tools of front tool post suited for the workpiece can be selected. (Option)

ㆍ제품 사진

ㆍ제품 동영상 링크

ㆍ제품명

CNC Precision Automatic Lathe

ㆍ모델명

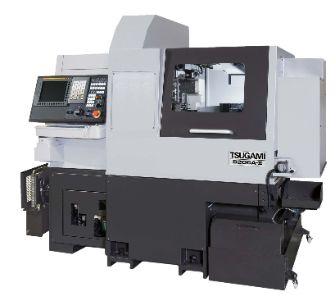

S206A-II

ㆍ제조사

TSUGAMI

ㆍ세부 품목 분류

자동선반

ㆍ제품설명

Flexible tool selection enables the variable-mix, variable-volume production of complicated workpieces. ●Modular tooling enables optimal tool allocation. ●The back tool post with Y axis enables the simultaneous operation of back side complex machining with main side machining. (S206A-Ⅱ) ●Thanks to the thermal displacement compensation, the long-term stable production is realized. ●Automatic programming software is provided as standard.

ㆍ제품 사진

ㆍ제품 동영상 링크

ㆍ제품명

CNC Lathe

ㆍ모델명

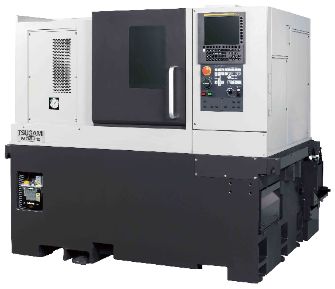

M08J-II

ㆍ제조사

TSUGAMI

ㆍ세부 품목 분류

수치제어 수평선반

ㆍ제품설명

High-rigidity and high-productivity turning machine ●Great cutting capability realizes high productivity. ●Programs can be created easily with on-board conversational programming software (FANUC: TURN MATE i) (Option). ●Minimizes the damage to the machine by abnormal load detection. ●Safety setting up by interference prevention function ●Thanks to the thermal displacement compensation, the long-term stable production is realized.

ㆍ제품 사진

ㆍ제품 동영상 링크
