Marketing Information

ㆍCompany

IL JIN TOOL TECH

ㆍRepresentative

SANGKI CHA

ㆍAddress

Siheung-si, Gyeonggi-do, Republic of Korea 244, Gongdan 1-daero

ㆍTel.

0314307094

ㆍEmployees

20~49

ㆍWebsite

www.iljintool.com

ㆍE-mail

iljin0904@naver.com

ㆍEstablished Year

1991

ㆍCompany Type

Manufacturing (Headquarters in Korea)

ㆍRelated Industry

ㆍMajor Customers

ㆍSNS

ㆍCompany Profile

Our company is a premier manufacturer specializing in Deep Hole Drilling tools. We are dedicated to providing high-performance tools and tailored solutions for deep hole processing, including BTA systems, Gun Drills, and MCT-compatible tools. Our BTA Tooling line features both the industry-standard SANDVIK type and our proprietary, in-house developed types. We offer an extensive range of diameters from 12.00mm up to 500.00mm. Beyond standard specifications, we excel in designing and manufacturing a wide variety of specialized BTA products to meet unique customer requirements. Regarding our Gun Drill offerings, we provide Insert-type Gun Drills that enable simple and rapid drilling operations. Available in diameters ranging from 10.00mm to 65.00mm, these tools are designed to maximize efficiency and minimize downtime during the machining process. We go beyond manufacturing; we serve as a strategic partner, offering technical solutions for difficult-to-cut materials and process optimi

Manufcaturer Information

ㆍManufacturer

IL JIN TOOL TECH

ㆍIntroduction

We specialize in manufacturing high-precision tools for deep hole processing, including BTA, Gun Drill, and MCT-compatible systems. BTA Tools: Available in SANDVIK and proprietary types, covering diameters from 12.00mm to 500.00mm. We professionally manufacture a wide range of special products, including Drilling, Counterboring, and Full Counterboring tools tailored to specific client processes. Gun Drill: Featuring an insert-type design for easy and fast drilling, available in diameters from 10.00mm to 65.00mm. We also offer specialized Gun Drills customized to suit various machining environments and specific requirements.

ㆍCountry

Korea

ㆍTel

ㆍE-mail

jungil@iljintool.com

ㆍWebsite

www.ilijintool.com

Exhibition Product

ㆍProduct

BTA Tool

ㆍModel

700 Series

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

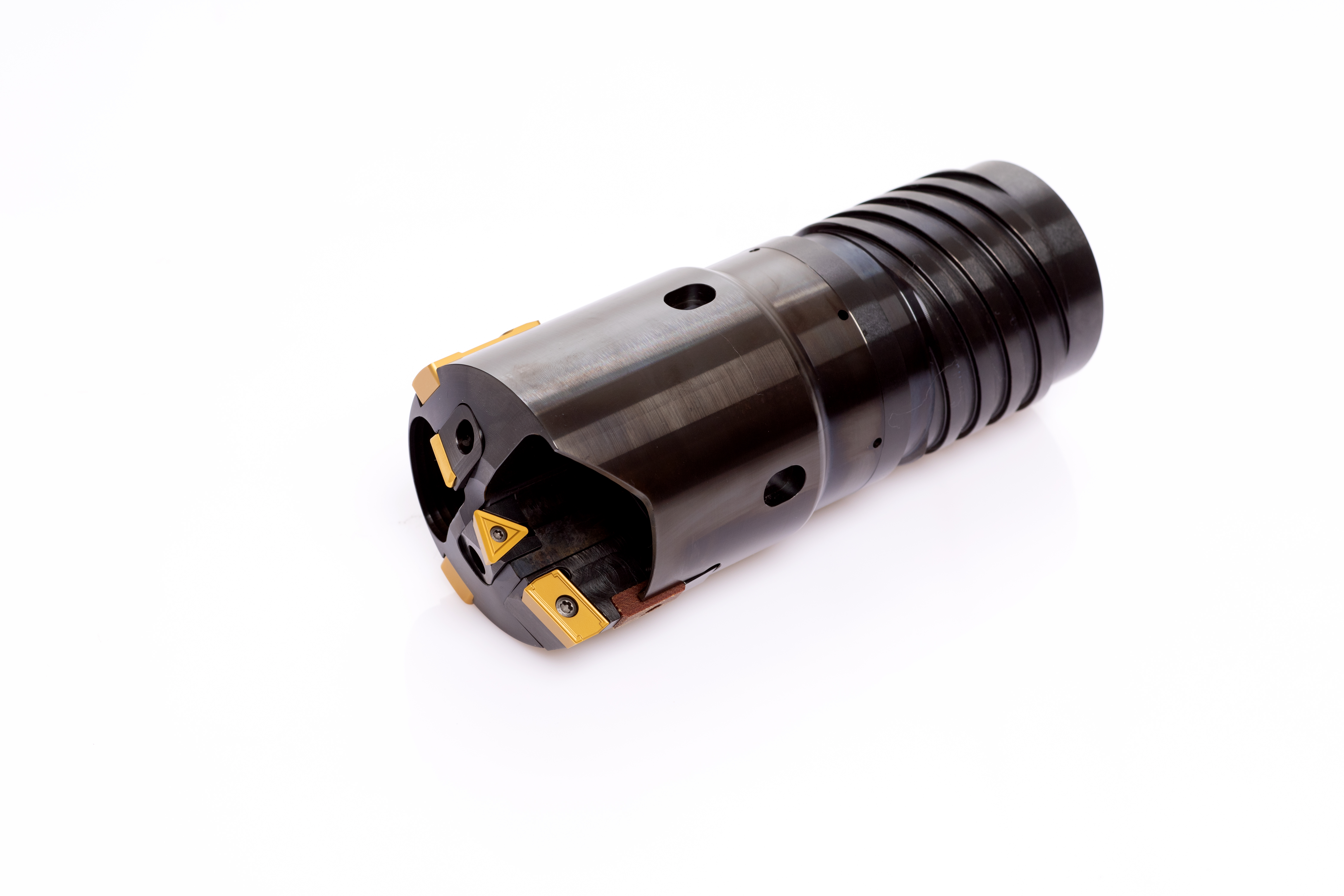

The BTA 700 Series covers the most in-demand diameter range from 12.00mm to 65.00mm, offering a system optimized for maximum machining efficiency. Optimized Design by Diameter: Ø12.00 ? 33.30mm: Manufactured with a single-edge design for high-precision processing. Ø33.31 ? 65.00mm: Manufactured with a double-edge design to enhance both stability and drilling speed. Simplified Maintenance: Equipped with a single type of insert and guide pad, making tool management and component replacement easy and efficient. Performance: This series is the most preferred choice in the industry, enabling stable, fast, and accurate drilling with superior chip evacuation and cutting power.

ㆍPicture

ㆍVideo link

ㆍProduct

BTA Tool

ㆍModel

800 Series

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

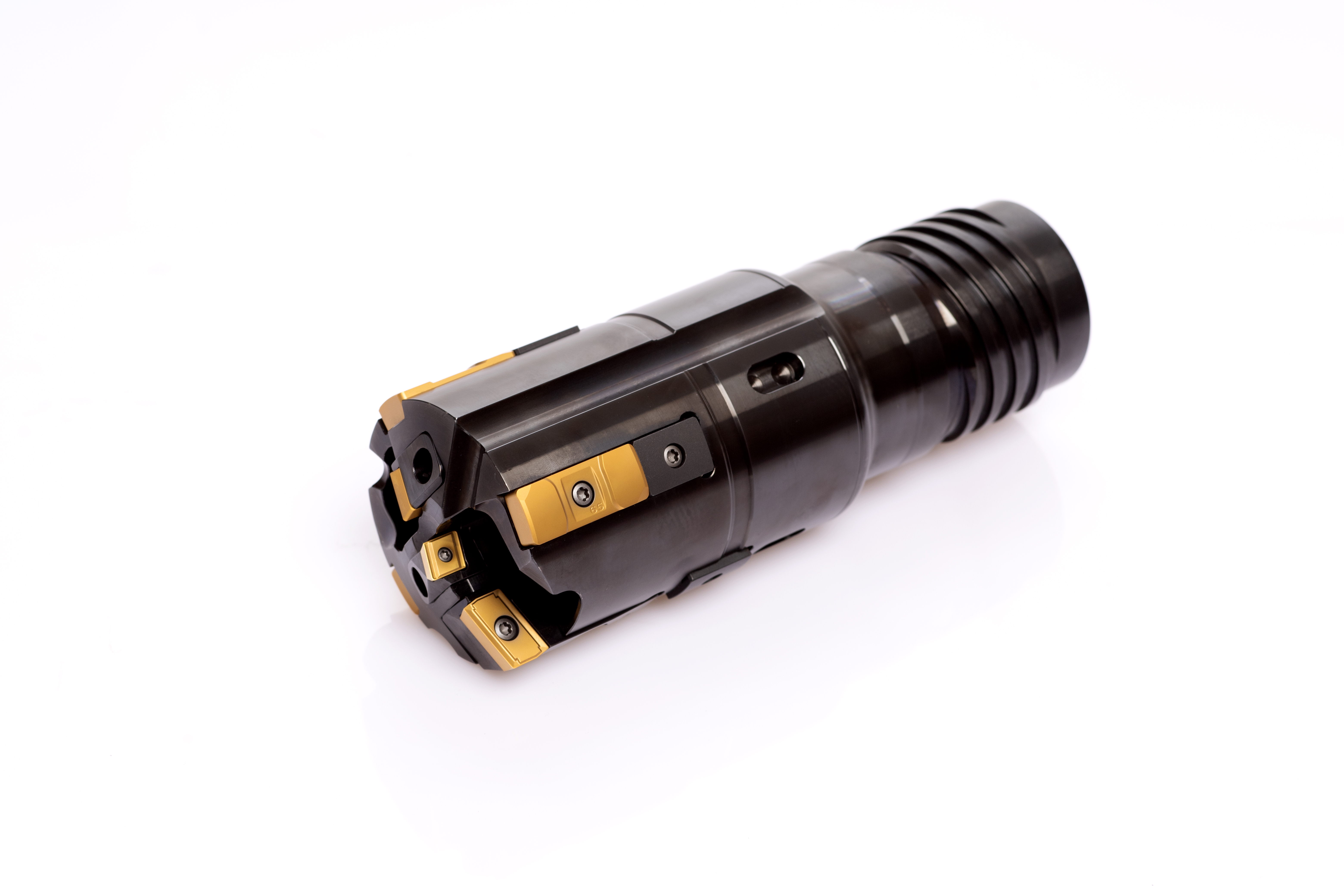

The BTA 800 Series is manufactured based on the Sandvik type, the most widely adopted standard in the industry, ensuring excellent compatibility and proven reliability. Diameter Range: This series features drilling heads typically ranging from Ø25.00mm to Ø65.00mm. Reduced Cutting Load via Split Cutting: By utilizing a triple-insert configuration?Center, Intermediate, and Peripheral?this system effectively distributes the cutting load. This minimizes resistance and enables exceptionally smooth and stable drilling operations. Superior Straightness: High-precision guide pads provide firm support during the machining process, ensuring outstanding straightness and precise dimensional accuracy, which are essential for high-quality deep hole drilling.

ㆍPicture

ㆍVideo link

ㆍProduct

BTA Tool

ㆍModel

801 Series

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

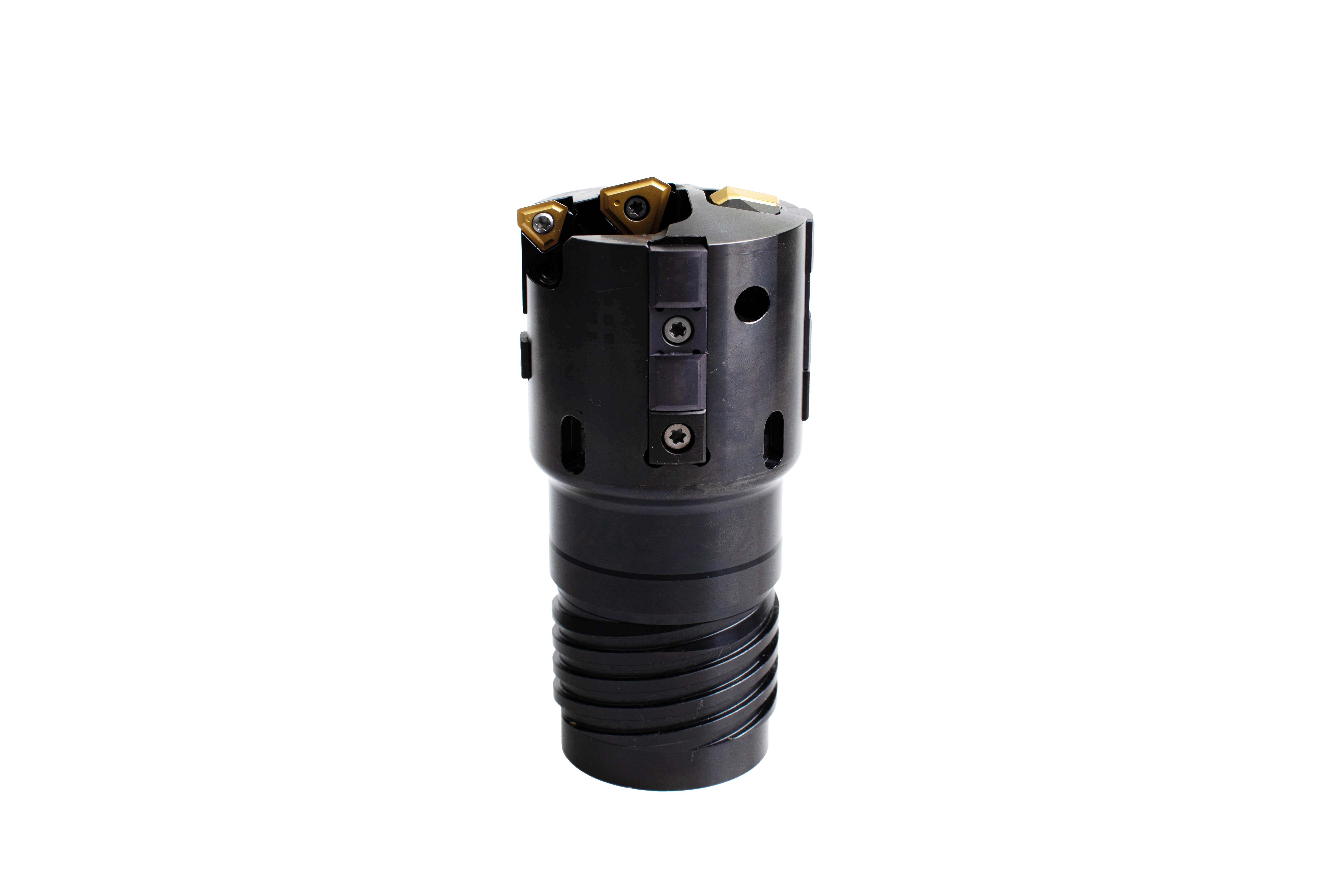

The BTA 801 Series is based on the Sandvik-type design and is specifically optimized for large-diameter drilling ranging from Ø65.00mm to Ø162.00mm. Efficient Insert Configuration: This series utilizes the same Center and Intermediate inserts as the 800 Series for enhanced cost-efficiency. Meanwhile, the Peripheral inserts and guide pads are specifically selected for each diameter to minimize cutting loads and ensure stable drilling performance. Cartridge Type Design: Featuring a Cartridge Type structure, the inserts are mounted on replaceable cartridges rather than directly on the head body. This allows for the long-term, stable use of the head and enables quick, cost-effective maintenance by simply replacing the cartridge in case of wear or damage. Stability in Large Diameters: It effectively dissipates the significant cutting forces generated during large-diameter machining, guaranteeing high precision and reliability for large-scale industrial components.

ㆍPicture

ㆍVideo link

ㆍProduct

BTA Tool

ㆍModel

T-max 424.10 Series

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

The T-Max 424.10 Series is manufactured based on the Sandvik-type design, providing comprehensive support for wide-ranging large-diameter drilling from Ø65.00mm up to 500.00mm. Versatile Insert Configuration: Utilizing TPMT and LPMT inserts, this series can cover various head diameters using only two types and two sizes of inserts. This significantly improves inventory efficiency and tool management. Robust Durability & Safety: The use of larger, heavy-duty inserts minimizes the risk of breakage during operation. This robust design ensures safe and stable drilling, especially during demanding, long-cycle machining tasks. Convenience of Cartridge System: The Cartridge-type structure prevents wear on the head body and offers exceptional ease of maintenance. It ensures stability in tool positioning, enhancing the reliability of large-scale component processing.

ㆍPicture

ㆍVideo link

ㆍProduct

BTA Tool

ㆍModel

500 Series

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

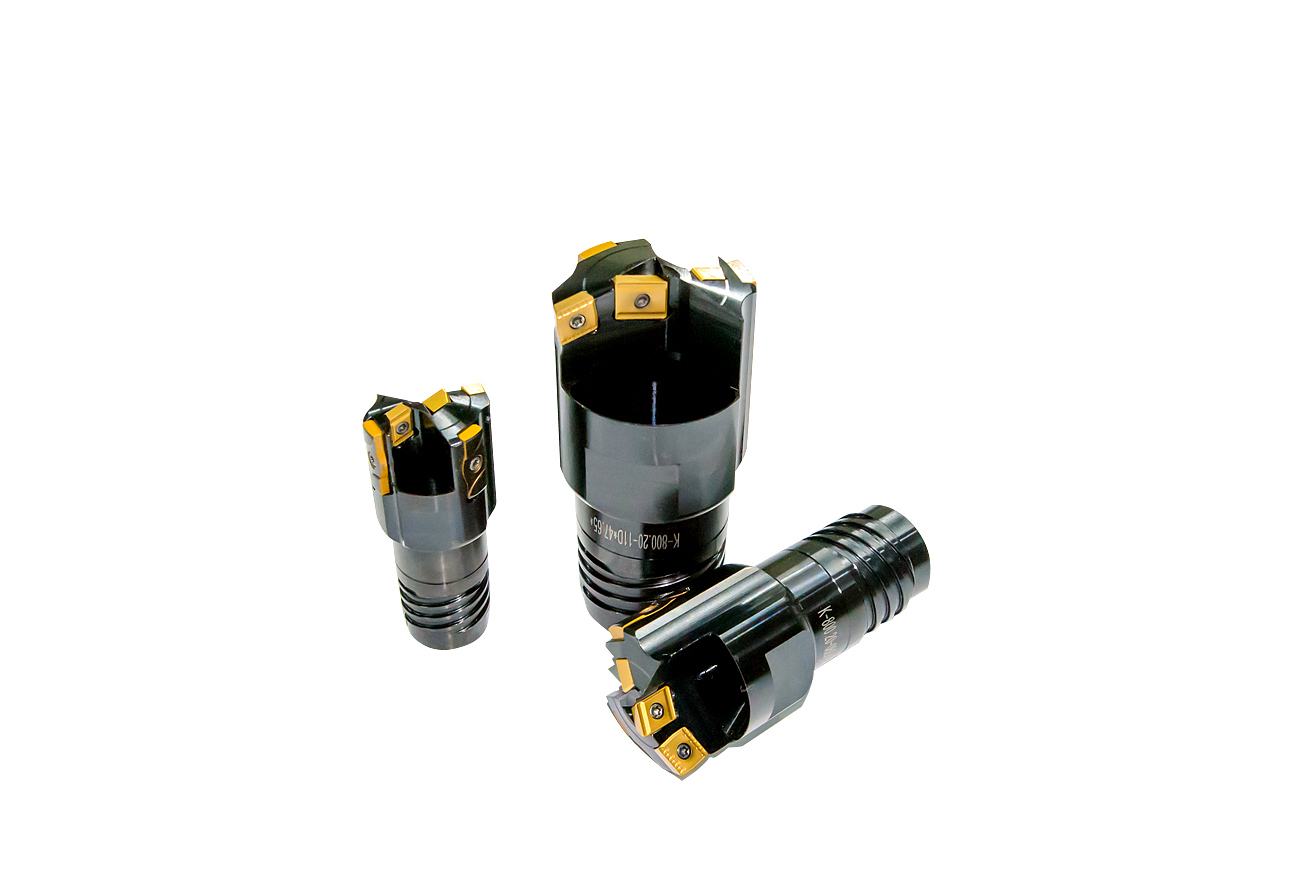

The BTA 500 Series is designed utilizing TPGX inserts, making it an ideal choice for operations that prioritize both efficiency and economic value. Diameter Range: This series features drilling heads covering a wide range from Ø65.00mm to Ø260.00mm. Cost Savings & Maintenance Convenience: Unlike other series that require multiple insert types, this series covers the entire diameter range using only one type of insert. This significantly reduces inventory costs and simplifies tool management for the client. Practical Design: Its streamlined yet robust design ensures stable performance, delivering high efficiency in repetitive deep hole drilling processes.

ㆍPicture

ㆍVideo link

ㆍProduct

Counter Boring Head

ㆍModel

818 Series

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

The BTA 818 Series is a high-performance Counterboring Head manufactured based on the Sandvik-type design. Equipped with Fiber Pads: The head features specialized fiber pads that absorb vibrations and provide firm support during operation. This ensures superior surface finish and stability, even in extremely deep hole processing. Adjustable Diameter Efficiency: The diameter can be adjusted by fine-tuning the cartridges. This versatility allows a single head to meet various diameter requirements, making it a highly efficient and cost-effective tool. High-Precision Counterboring: This series is optimized for accurately enlarging or finishing pre-drilled holes, delivering exceptional straightness and dimensional accuracy.

ㆍPicture

ㆍVideo link

ㆍProduct

Insert type Gundrill

ㆍModel

600.20 시리즈

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

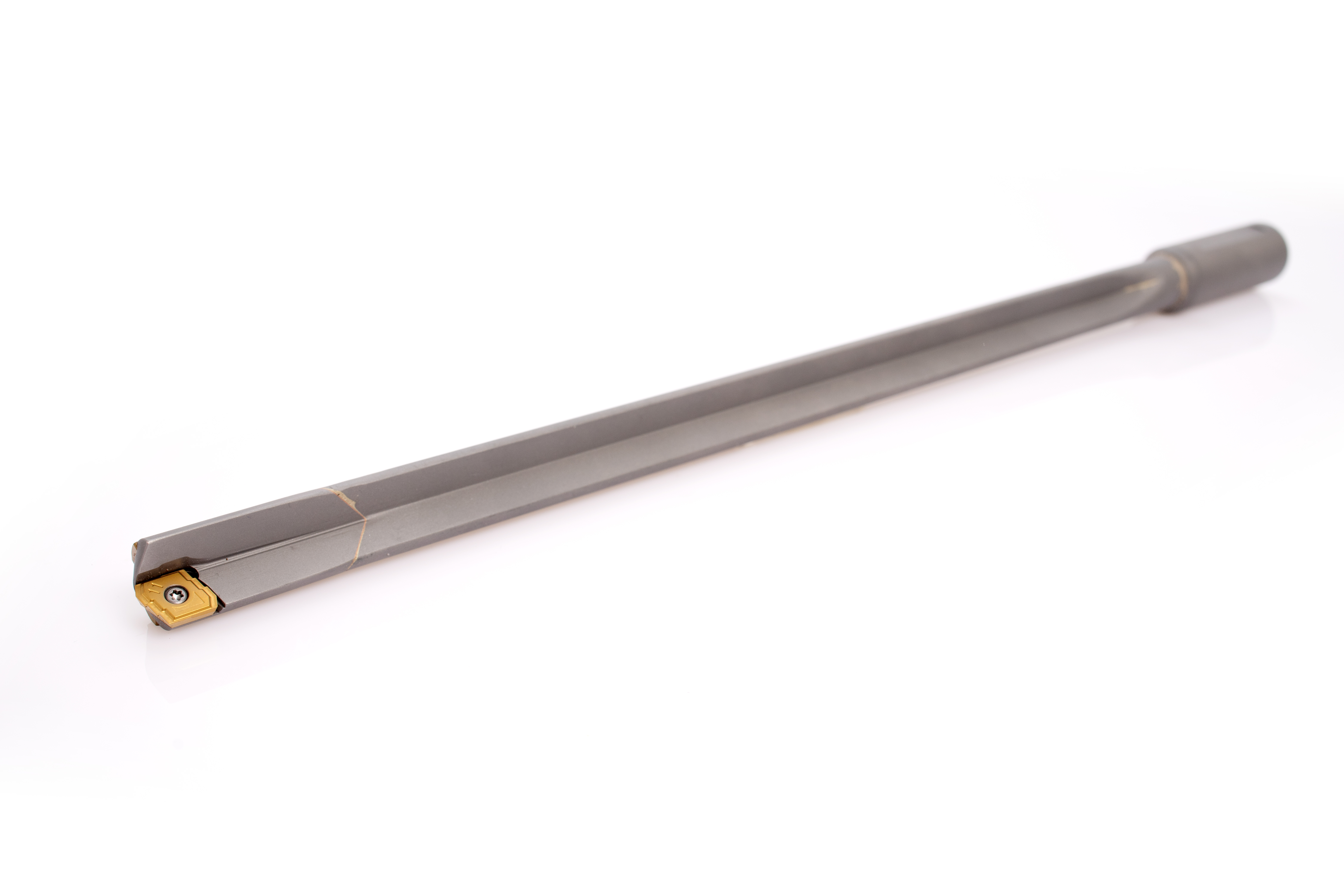

The 600.20 Series is an insert-type gun drill designed to cover the most widely used diameter range from Ø10.00mm to Ø33.30mm. Superior Performance: Compared to conventional brazed-type gun drills, this series offers significantly faster drilling speeds and ensures excellent straightness through its precision-engineered design. Exceptional Surface Finish: Equipped with dedicated guide pads, it produces an extremely smooth surface finish on the workpiece interior after drilling, meeting high-quality requirements. Operational Efficiency: The insert-type system eliminates the need for complex regrinding, allowing for stable tool life management and increased overall productivity.

ㆍPicture

ㆍVideo link

ㆍProduct

Insert type Gundrill

ㆍModel

600.40 Series

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

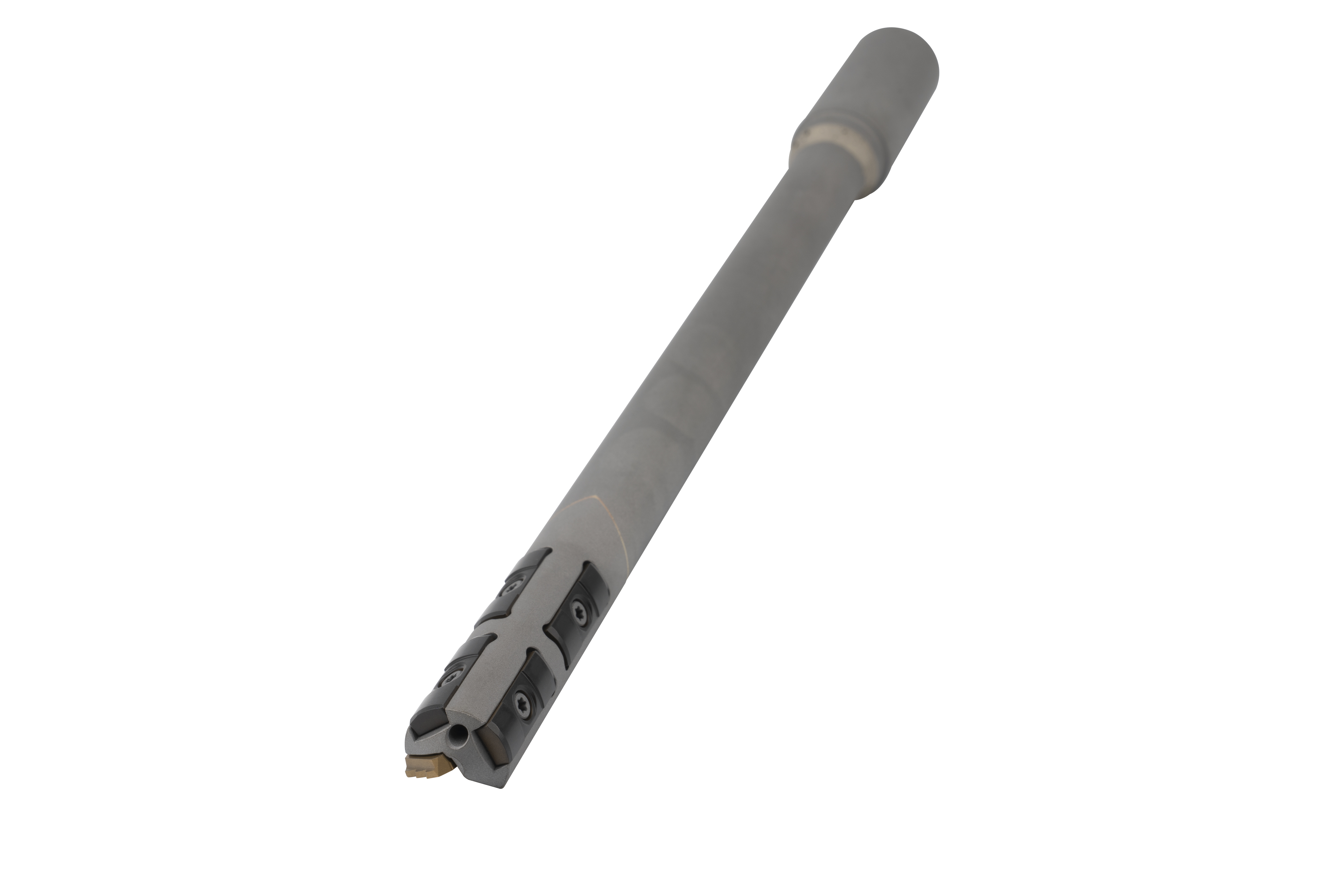

600.40 Series: Double Guide Pad Gun Drill for Cross-Hole & High-Stability Machining While covering the same diameter range as the 600.20 series (Ø10.00?33.30mm), the 600.40 Series is a specialized gun drill engineered for maximum machining stability. Double Guide Pad Design: Unlike standard configurations, this series is equipped with double-row guide pads to provide reinforced support. It is ideal for cross-hole drilling or any application requiring exceptionally firm tool stability. Superior Stability in Cross-Hole Drilling: When passing through intersecting holes, the double guide pads provide continuous support, preventing tool deflection. This ensures a significantly more stable and precise transition into the second drilling stage compared to the 600.20 series. Maintained High Precision: By minimizing vibration even in irregular machining conditions, it ensures top-tier straightness and dimensional accuracy throughout the entire process.

ㆍPicture

ㆍVideo link

ㆍProduct

CNC Drill

ㆍModel

705 Series

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

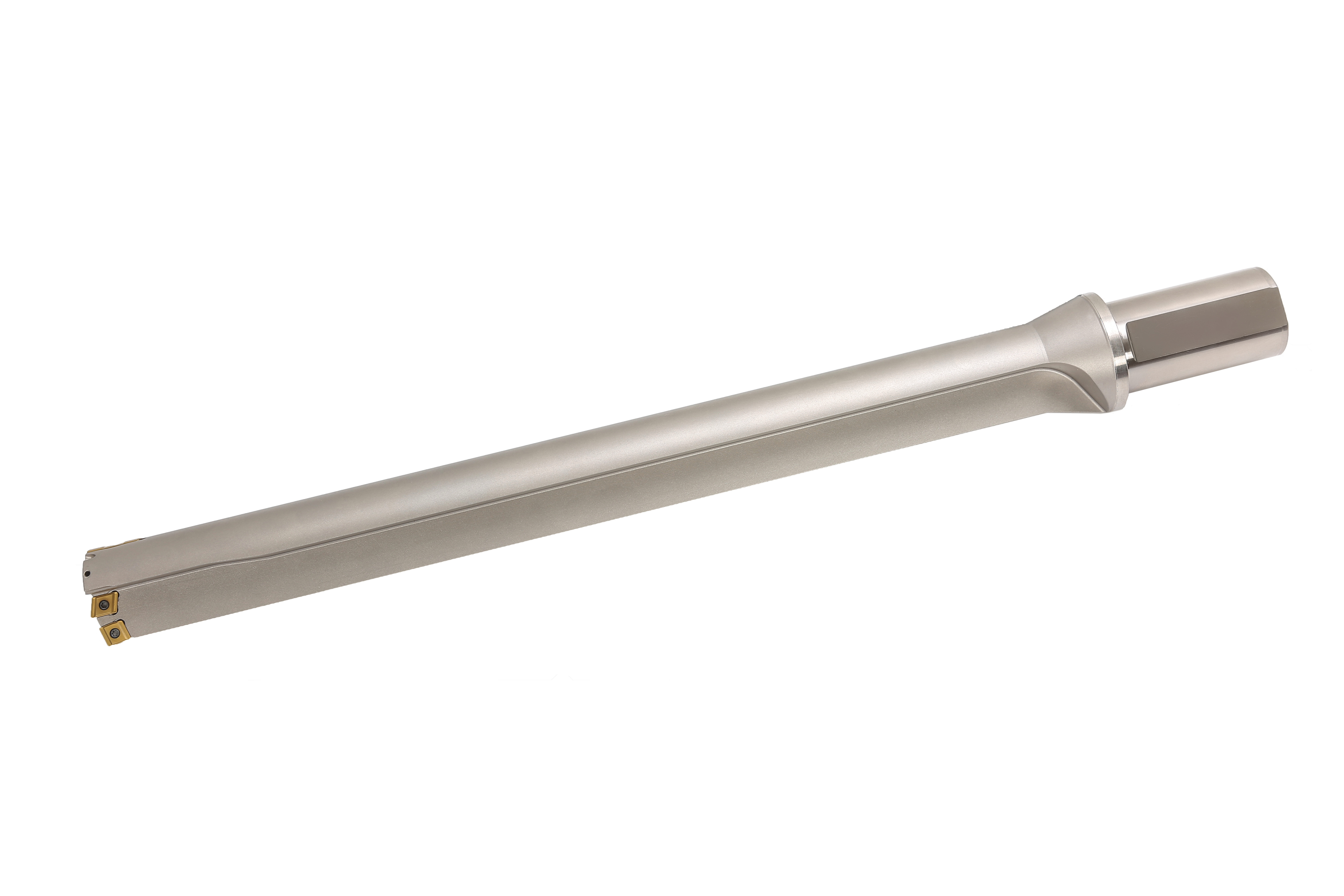

The 705 Series is a specialized tool featuring an integrated (solid-body) design to provide ultimate stability during deep hole machining operations. Solid-Body Design: Similar to a gun drill, it is manufactured as a rigid, integrated unit without flexibility. This design ensures that the tool penetrates the material with high precision and zero deflection. Efficient Insert System: It utilizes the same inserts as our gun drill series, offering excellent compatibility and streamlined tool management. Range & Equipment: Available in diameters from Ø15.00mm to Ø70.00mm, this series is specifically optimized for use on CNC lathes and horizontal machining centers. Machining Stability: Its superior rigidity suppresses vibrations, guaranteeing both operational stability and high productivity in demanding deep hole applications.

ㆍPicture

ㆍVideo link

ㆍProduct

Insert type Drill

ㆍModel

805 Series

ㆍManufacturing Company

IL JIN TOOL TECH

ㆍProduct Code

Drills

ㆍDescription

The 805 Series is a Sandvik-type product manufactured using the proven insert system of the 800 Series, specifically engineered for maximum stability in horizontal machining environments. Efficient Split Cutting: Utilizing the same Center, Intermediate, and Peripheral insert configuration as the 800 Series, it effectively distributes the cutting load. This ensures smooth and stable drilling performance. Optimized for Horizontal Machines: Equipped with precision guide pads that provide firm support, this series is ideal for deep hole processing on Horizontal Machines, maintaining stability even in demanding conditions. Superior Straightness: The combination of strategic insert positioning and guide pad support guarantees exceptional straightness and precise dimensional accuracy, which are critical for high-quality deep hole drilling.

ㆍPicture

ㆍVideo link
